What is an Ogive in Statistics?
In statistics, an ogive, also known as a cumulative frequency polygon, refers to two different things:
1. A hand-drawn graph of a cumulative distribution function: This type of ogive is a freehand curve drawn to visually represent the cumulative distribution of a set of data. It shows the proportion of data points that are less than or equal to a given value.
Article continues below advertisement
2. An empirical cumulative distribution function: This type of ogive is a step-function graph that is constructed from the data itself. It shows the cumulative frequency of each class interval in a frequency table.
Both types of ogives are used to answer questions about the distribution of data. They can be used to:
- Estimate the percentage of data points that fall below a certain value.
- Compare the distributions of two or more sets of data.
- Identify outliers in a data set.
- Determine the median, quartiles, and other percentiles of a data set.
Here are some key points to remember about ogives:
- Ogive is a cumulative representation of frequency. It shows the running total of frequencies up to a certain point, unlike a simple frequency polygon which shows the individual frequencies.
- Ogive is made up of line segments connecting points representing class limits and their corresponding cumulative frequencies.
- There are two types of ogives: "more than" and "less than". A "more than" ogive shows the percentage of data points that are greater than a certain value, while a "less than" ogive shows the percentage of data points that are less than a certain value.
- Ogive can be used to estimate percentiles. The 50th percentile, or median, is the point where the "more than" and "less than" ogives intersect.
Ogive Definition
An ogive, in statistical terms, refers to a graphical representation that displays the cumulative distribution of a dataset. It is often used to visualize the cumulative frequency distribution of a set of continuous data. The ogive is constructed by plotting points that represent the cumulative frequency at various intervals or class boundaries.
Article continues below advertisement
Article continues below advertisement
There are two types of ogives: less than type and more than type.
Less than type ogive: In this type of ogive, the cumulative frequencies are plotted against the upper class boundaries or midpoints of the class intervals. The points are connected with straight lines to form a curve.
More than type ogive: In this type of ogive, the cumulative frequencies are plotted against the lower class boundaries or midpoints of the class intervals. Again, the points are connected to form a curve.
Ogives are useful for understanding the distribution of data, especially when dealing with large datasets. They help in identifying patterns, trends, and percentiles within the data.

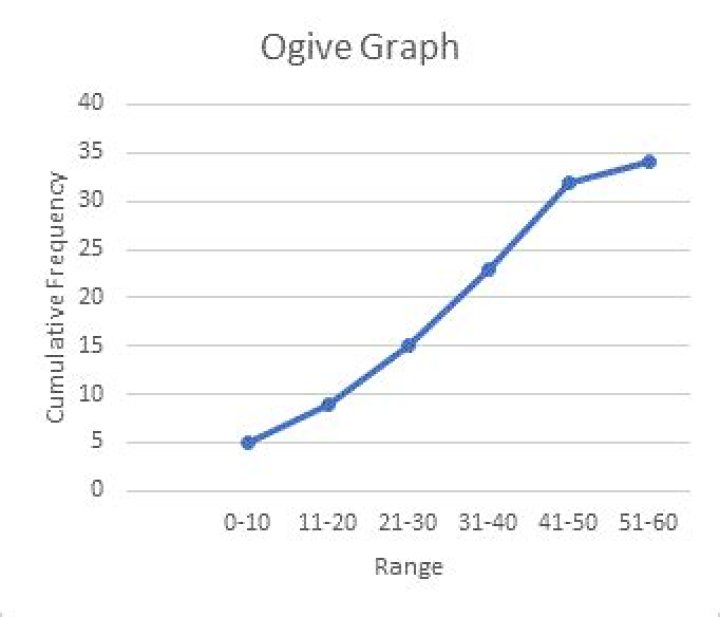

Ogive Graph
An ogive graph, also known as a cumulative frequency graph, is a graphical representation of the cumulative frequency distribution of a dataset. It is often used in statistics to visualize the cumulative number of observations that are less than or equal to a particular value.
Article continues below advertisement
To create an ogive graph, you follow these steps:
Prepare Your Data:
- Organize your data in ascending order.
- Create a table with columns for values, frequencies, and cumulative frequencies.
Calculate Cumulative Frequencies:
- Add up the frequencies as you go down the list. The cumulative frequency for the first value is the same as its frequency. For subsequent values, add the current frequency to the previous cumulative frequency.
Draw the Axes:
- Draw a set of axes on a piece of graph paper. The horizontal axis represents the values, and the vertical axis represents the cumulative frequencies.
Plot Points:
- Plot points for each value against its cumulative frequency. The points should be plotted at the upper class boundaries.
Connect the Points:
- Connect the points with a line to form the ogive.
Here's an example to illustrate the process:
Suppose you have the following dataset:
| Value | Frequency |
|---|---|
| 10 | 3 |
| 15 | 7 |
| 20 | 5 |
| 25 | 4 |
Calculate Cumulative Frequencies:
| Value | Frequency | Cumulative Frequency |
|---|---|---|
| 10 | 3 | 3 |
| 15 | 7 | 10 |
| 20 | 5 | 15 |
| 25 | 4 | 19 |
Plot the points and connect them to form the ogive.
Remember that the ogive represents cumulative frequencies, so the last point on the ogive should have a cumulative frequency equal to the total number of observations in your dataset.
Ogives are useful for understanding the distribution of data and finding percentiles. They can be used to answer questions like "What percentage of values are less than a certain value?"
Characteristics of Ogive in Statistics
An ogive is a graphical representation used in statistics to depict the cumulative distribution function (CDF) of a dataset. It provides information about the cumulative frequency of observations up to a particular data point. Here are some characteristics of an ogive:
Article continues below advertisement
Article continues below advertisement
Cumulative Frequency: The primary purpose of an ogive is to display the cumulative frequency of the dataset. Each point on the ogive represents the cumulative frequency up to that point.
S-shaped Curve: The graph of an ogive typically forms an S-shaped curve. This curve can be ascending or descending, depending on the direction in which the ogive is constructed.
X-axis and Y-axis: The x-axis of the ogive represents the variable values (data points), while the y-axis represents the cumulative frequency. The ogive starts from zero on the y-axis and ends at the total cumulative frequency.
Ogive Types:
- Less Than Ogive: In this type of ogive, each point on the curve represents the cumulative frequency up to and including that data point.
- More Than Ogive: Here, each point represents the cumulative frequency greater than or equal to the corresponding data point.
Intersection with Percentiles: The ogive is often used to identify percentiles in a dataset. For example, the point where the ogive intersects the 50% mark on the y-axis corresponds to the median of the dataset.
Interpolation: Ogives are useful for estimating percentiles for values that do not appear in the dataset. Interpolation involves using the ogive to estimate cumulative frequencies for values between existing data points.
Smoothed Curves: Ogives can be smoothed by using curves instead of straight lines to connect the points. This can help in presenting a clearer picture of the cumulative distribution.
Scale: It's important to carefully choose the scale on both the x-axis and y-axis to ensure the ogive accurately represents the cumulative distribution without distorting the visual interpretation.
Ogives are particularly useful when you want to understand the distribution of a dataset and analyze the cumulative behavior of the data points. They are commonly used in descriptive statistics to complement other graphical representations like histograms or frequency polygons.
Uses of Ogive in Statistics
An ogive, also known as a cumulative frequency curve, is a graphical representation used in statistics to display the cumulative frequencies of a dataset. It is particularly useful for understanding the distribution of data and analyzing cumulative frequency distributions. Here are some key uses of ogives in statistics:
Article continues below advertisement
Cumulative Frequency Display:
- Ogives provide a visual representation of cumulative frequencies for different data points in a dataset.
- They allow analysts to observe how quickly or slowly the cumulative frequencies increase as the data values progress.
Percentiles and Quartiles:
- Ogives can be used to identify percentiles and quartiles on a cumulative frequency distribution.
- Percentiles and quartiles help in understanding the spread and central tendency of the data.
Median Identification:
- The median, which is the middle value in a dataset, can be easily identified on an ogive.
- It helps in visualizing the point where 50% of the data lies below and 50% lies above.
Interquartile Range (IQR):
- The interquartile range, which is the range of the middle 50% of the data, can be analyzed using an ogive.
- It is particularly useful in understanding the variability within the central portion of the dataset.
Comparison of Distributions:
- Ogives can be used to compare the distributions of two or more datasets.
- By plotting multiple ogives on the same graph, analysts can easily compare the cumulative frequencies and distributions of different datasets.
Data Skewness and Symmetry:
- The shape of the ogive can indicate the skewness or symmetry of the data distribution.
- A symmetric distribution will have a smooth, gradually increasing ogive, while a skewed distribution may show a steeper slope on one side.
Estimation of Percentages:
- Ogives allow for easy estimation of the percentage of data falling below a certain value.
- This is particularly useful when analyzing the proportion of data within a specific range or below a certain threshold.
Graphical Representation for Presentations:
- Ogives are often used in presentations and reports to provide a clear and concise graphical representation of cumulative frequencies.
- They offer a more intuitive understanding of the data distribution compared to raw frequency tables.
In summary, ogives serve as a valuable tool in statistical analysis by providing a visual representation of cumulative frequencies, aiding in the interpretation of data distribution, and facilitating various analytical tasks.
Examples on Ogive
An ogive, also known as a cumulative frequency polygon, is a graphical representation of the cumulative distribution of a dataset. It is commonly used in statistics to show the distribution of values in a dataset and to analyze the cumulative frequency.
Article continues below advertisement
Article continues below advertisement
Here are two examples of ogives:
Example 1: Construction Industry Wages
Suppose you have a dataset representing the weekly wages of construction workers in a city. The data might look like this:
| Weekly Wages ($) | Number of Workers |
|---|---|
| 500 | 10 |
| 700 | 15 |
| 900 | 20 |
| 1100 | 12 |
| 1300 | 8 |
To create an ogive for this dataset, you would follow these steps:
- Calculate the cumulative frequency for each wage level.
- Plot the points on a graph, with the x-axis representing the wage levels and the y-axis representing the cumulative frequency.
The resulting ogive might show a curve that rises gradually as wages increase.
Example 2: Exam Scores
Consider a dataset representing the exam scores of a class:
| Exam Scores | Number of Students |
|---|---|
| 60 | 5 |
| 70 | 8 |
| 80 | 12 |
| 90 | 10 |
| 100 | 5 |
To construct an ogive for this dataset:
- Calculate the cumulative frequency for each score.
- Plot the points on a graph.
The resulting ogive might show a steeper curve, indicating that a significant portion of the students scored higher on the exam.
In both examples, the ogive helps visualize the cumulative distribution of the data and provides insights into the overall pattern of the dataset.
